CD Industrial Group Inc.

Simulations & Hands-On Learning Challenges
Level II
3 Day
$1995
Instructor-Led Course

ControlLogix & RSLogix 5000 Intermediate

This level two course teaches basic PLC network troubleshooting and analog I/O skills. Participants configure a complete mill network (simulated with our classroom lab of ControlLogix stations and networking gear) of PLCs with Ethernet or ControlNet and then recover that same network to proper working order on day two, after a major power outage.

Analog I/O cards for voltage and current are configured and utilized to complete a delay and variable speed windshield wiper project with potentiometers as field inputs and voltmeters as outputs (the windshield wipers).

4–20 mA analog control loops and feedback are introduced by connecting and configuring a 2-wire temperature transmitter to an analog input card.

Indirect addressing is introduced along with the use of the trend plotter and diagnostic modes built in to the I/O modules.

Messages and produced/consumed tags are introduced. Indirect addressing is covered along with the use of settings and diagnostic modes that are built in to the I/O modules.

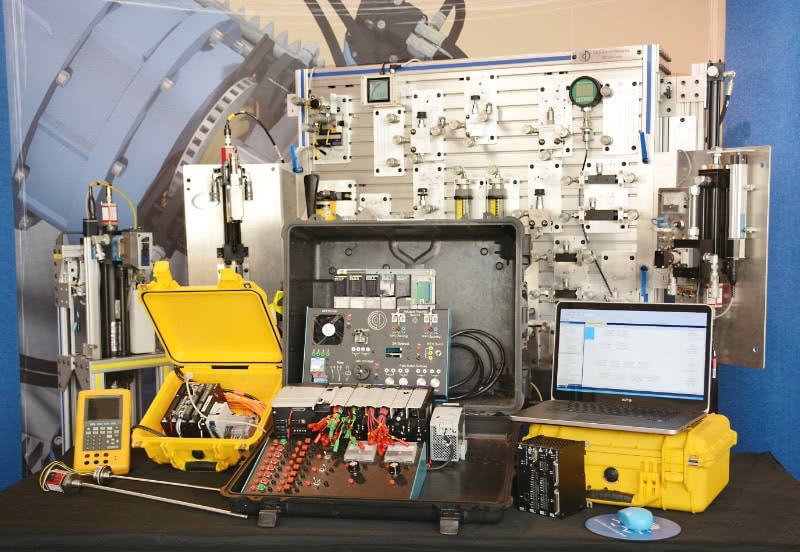

This course is taught using ControlLogix PLC stations with analog I/O panels and a ControlLogix software simulation environment.

CONTROLLOGIX BASICS REVIEWED

Objective: Describe basic ControlLogix system functions

TAGS AND DATA TYPES

Objective: Explain data types and tag standards

CONTROLLER AND MODULE FAULTS

Objective: Differentiate between major faults and simple clear/solve faults

COMMUNICATIONS

Objective: Identify and test PLC communication and network schemes

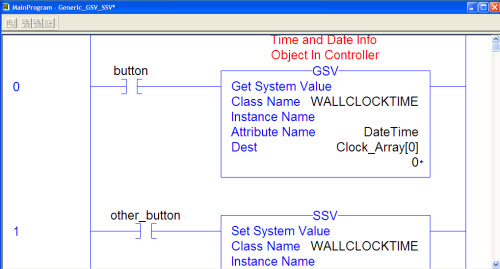

STATUS FLAGS AND SYSTEM VALUES

Objective: Interpret programs references and parameters that access controller objects

ADVANCED PROGRAM INSTRUCTIONS

Objective: Interpret and modify advanced instructions. Incorporate advanced program instructions to facilitate input and output analog operations.

ANALOG I/O PROCESSES

Objective: Configure and interpret analog rungs and modules

Where to go from here?

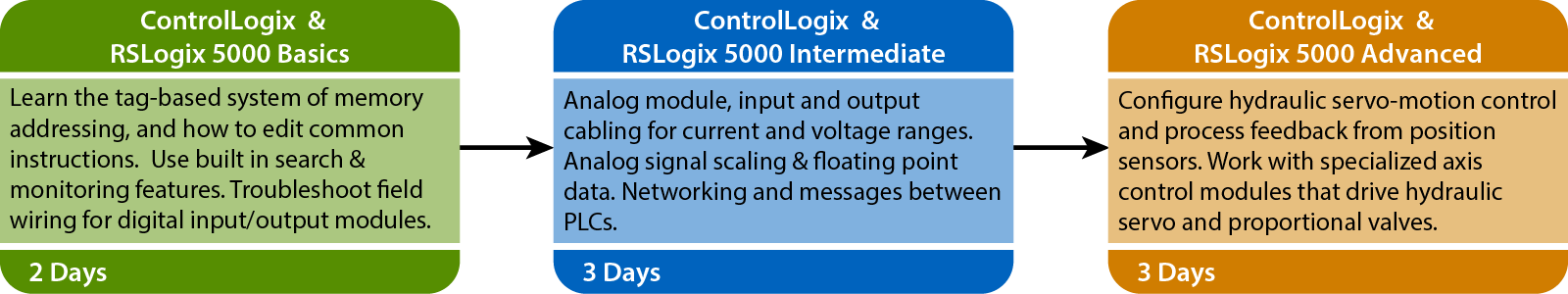

ControlLogix & RSLogix 5000 Intermediate is the second in a three course series. After completing this course, you can take the level 3 ControlLogix & RSLogix 5000 Advanced.
